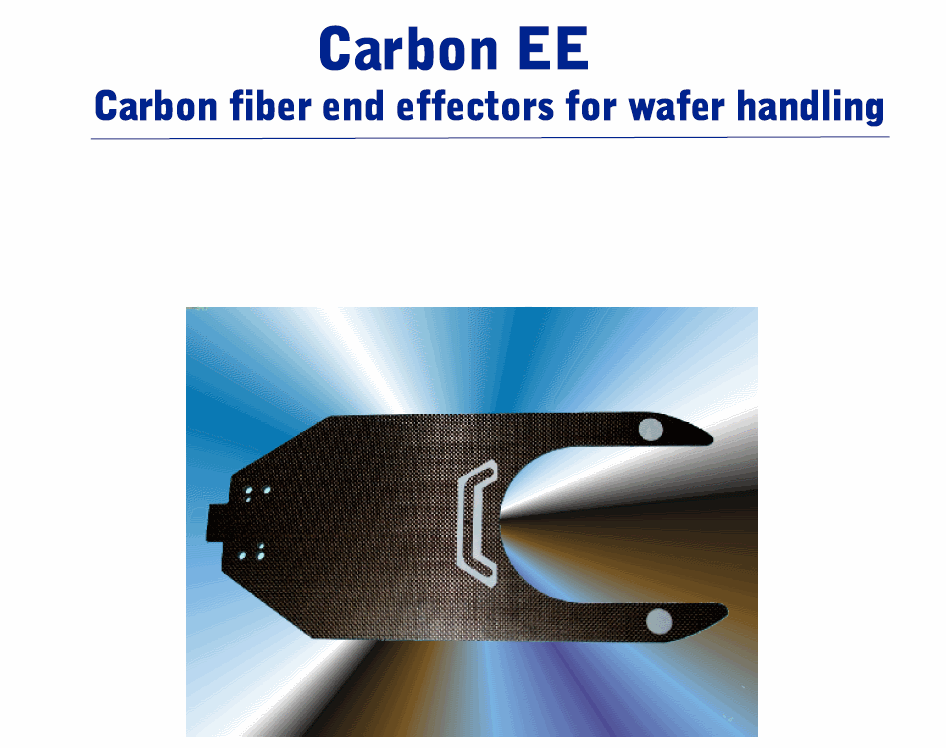

CARBON FIBER END EFFECTORS AND AIR TWEEZERS FOR WAFER HANDLING

End effectors for wafer handling are made in a number of different materials and with different technologies.

Carbon fiber allows to obtain pieces featured by high rigidity, thin section, light weight and high shock resistance.

Our technology is based on the use of high module carbon fiber wich is optimal from the mechanical point of view.

To prevent any kind of contamination, the area in contact with wafers is covered with special teflon/ceramic material, wich is cut to obtain th right vacuum seal shape.

WHY REPLACE YOU END EFFECTOR WITH OUR CARBON FIBER PIECES?: Our parts are MORE DURABLE, MORE SAFE and LESS EXPENSIVE than conventional parts.

More, our Customers reports about better results in their processes, especially in terms of wafer breakage and surface damages, when they moved to our end effectors.

Many different compatible end effectors are available for better performances and cost effective replacement on existing equipment.

Special versions are available, such as the ACTIVE HANDLING SYSTEM, including mechanical centering system and embedded photosensors for wafer detection.

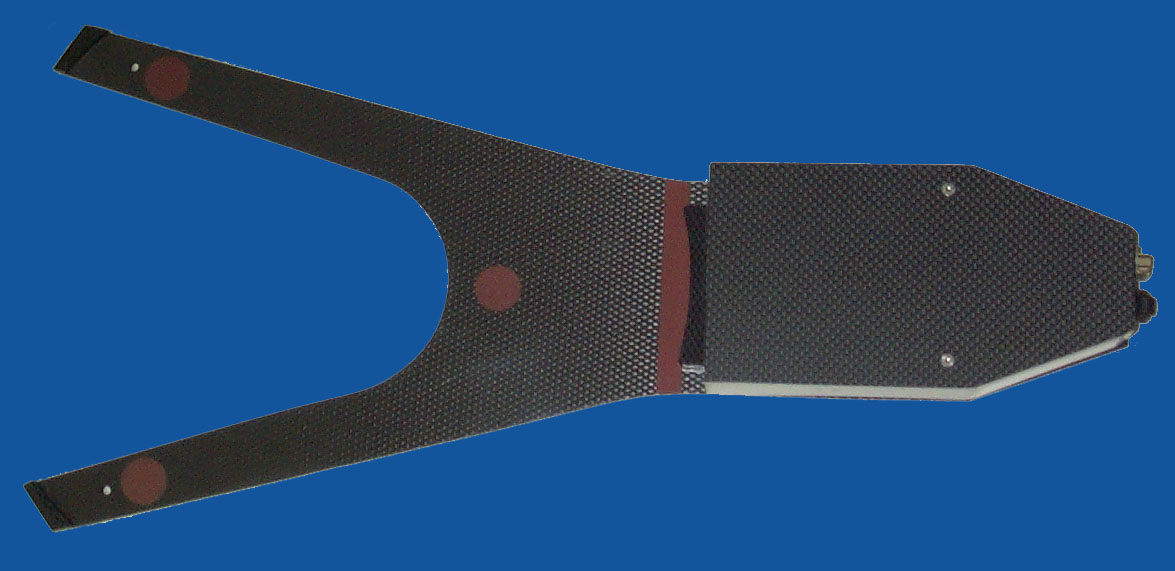

A part of available end effector is represented into the following gallery. Contact us for the availability of other models or refer to our RAPID PROTOTYPING SERVICE.
