CARBON FIBER END EFFECTOR DATA SHEET
CARBON
FIBER END EFFECTOR DATA SHEET
OUR CODE _______________________________________________________ORIGINAL PART
C45-OY01F1-1V _________________________________________________________ NOT AVAILABLE
RELEASE DATE May. 2004__________________________________________RELEASE NUMBER 1.0
EQUIPMENT MANUFACTURER_____________________________________ EQUIPMENT TYPE
OLYMPUS _________________________________________________________________ MICROSCOPE LOADER
APPLICATION DESCRIPTION

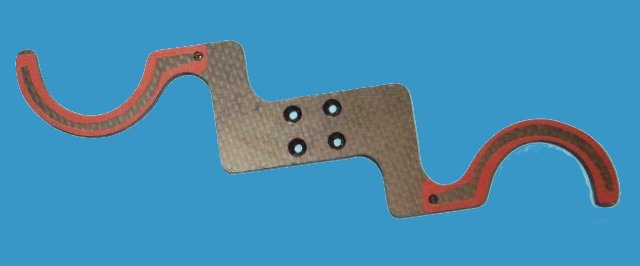

This is a double hook shaped, carbon end effector. It is made by three layers of 1.5 mm carbon laminate, and replaces an aluminum original part with peek vacuum pads.
Basically our part is more durable than the bendable original. The teflon pads vacuum distribution is made to assure better grip especially on thin wafers and to optimize the handling.
