CARBON FIBER END EFFECTOR DATA SHEET

OUR CODE _______________________________________________________ORIGINAL PART

C30-VF2-1V_________________________________________________________ NOT AVAILABLE

RELEASE DATE May. 2003__________________________________________RELEASE NUMBER 1.0

EQUIPMENT MANUFACTURER_____________________________________ EQUIPMENT TYPE

VEECO METROLOGY_____________________________________________________WAFER MEASUREMENT

APPLICATION DESCRIPTION

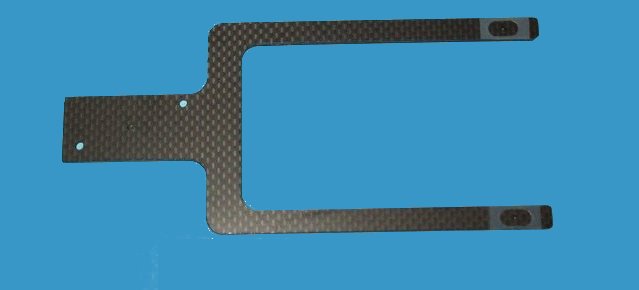

This is a fork shaped, carbon end effector for 8" applications. It is made by a double layer of 1.5 mm carbon laminate, and is used as original part by the OEM.
