CARBON FIBER END EFFECTOR DATA SHEET

OUR CODE _______________________________________________________ORIGINAL PART

C30-V301-1V_________________________________________________________ NOT AVAILABLE

RELEASE DATE Nov. 2003__________________________________________RELEASE NUMBER 1.2

EQUIPMENT MANUFACTURER_____________________________________ EQUIPMENT TYPE

VEECO METROLOGY_____________________________________________________WAFER MEASUREMENT

APPLICATION DESCRIPTION

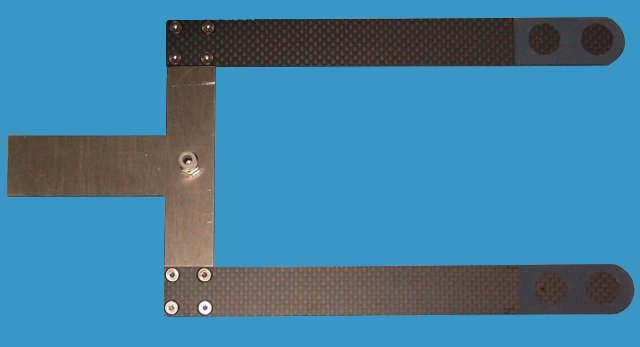

This is a fork shaped, carbon end effector for 12" applications. It is made by two fingers constructed as a double layer of 1.5 mm carbon laminate, plus a special light alloy holder, and is used as original part by the OEM.
