CARBON FIBER END EFFECTOR DATA SHEET

OUR CODE _______________________________________________________ORIGINAL PART

C15-TKP01ST-1V_________________________________________________________ NOT AVAILABLE

RELEASE DATE May. 2002__________________________________________RELEASE NUMBER 1.2

EQUIPMENT MANUFACTURER_____________________________________ EQUIPMENT TYPE

TAIKOKU__________________________________________________________________ WAFER TAPE REMOVER

APPLICATION DESCRIPTION

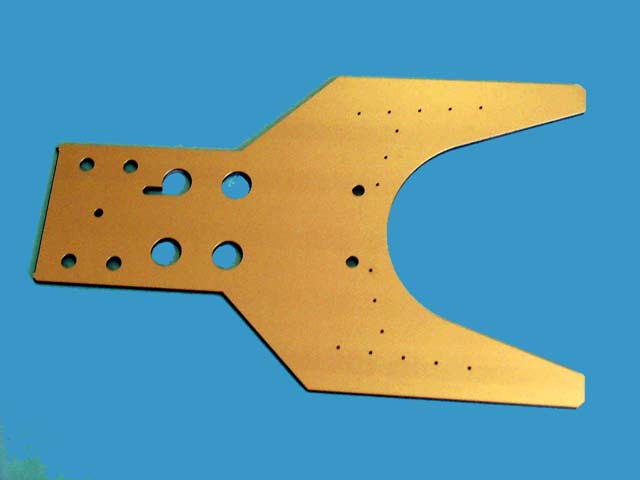

This is a fork shaped, carbon end effector. It is made by a single layer of 1.5 mm carbon laminate, and replaces a metal original part.

Basically our part is more durable than the bendable original. The micro holes vacuum distribution is also better to assure grip, especially in case of thin wafers. This version is cover with a double layer of stanless steel, to protect the carbon fiber in case of high UV irradiation.
