CARBON FIBER END EFFECTOR DATA SHEET

OUR CODE _______________________________________________________ORIGINAL PART

C15-TKP01-1V_________________________________________________________ NOT AVAILABLE

RELEASE DATE May. 2002__________________________________________RELEASE NUMBER 1.2

EQUIPMENT MANUFACTURER_____________________________________ EQUIPMENT TYPE

TAIKOKU__________________________________________________________________ WAFER TAPE REMOVER

APPLICATION DESCRIPTION

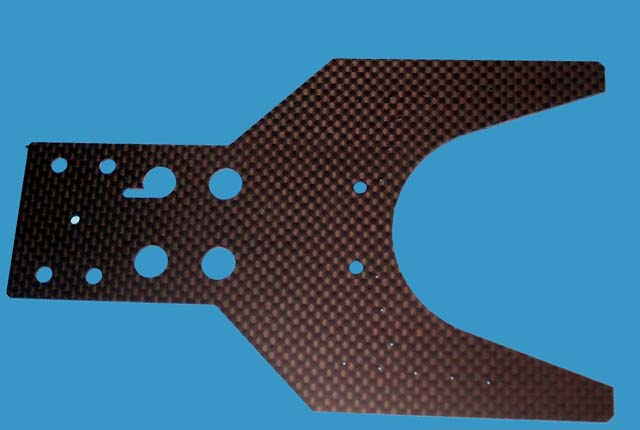

This is a fork shaped, carbon end effector. It is made by a single layer of 1.5 mm carbon laminate, and replaces a metal original part.

Basically our part is more durable than the bendable original. The micro holes vacuum distribution is also better to assure grip, especially in case of thin wafers.
