CARBON FIBER END EFFECTOR DATA SHEET

OUR CODE _______________________________________________________ORIGINAL PART P/N

C15-DNSK238-0M_____________________________________________________ NOT AVAILABLE

RELEASE DATE Dic. 2004 ___________________________________________RELEASE NUMBER 1.1

EQUIPMENT MANUFACTURER _____________________________________EQUIPMENT TYPE

DNS ________________________________________________________________DNS SK 2000

APPLICATION DESCRIPTION

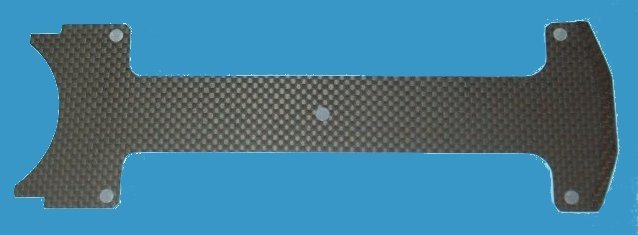

This is a 8", H shaped type passive mechanical end effector.

Our part is featured by a better durability vs, the original. The original is made by ceramic, and then fragile. Our part is slightly thicker than the original, but for 8" applications have been positively tested in all cases.
