CARBON FIBER END EFFECTOR DATA SHEET

OUR CODE _______________________________________________________ORIGINAL PART P/N

C15-DN80A-1V _______________________________________________________2-F3-38538

RELEASE DATE June 2002__________________________________________ RELEASE NUMBER 1.0

EQUIPMENT MANUFACTURER _____________________________________EQUIPMENT TYPE

DNS ________________________________________________________________DNS 80 A

APPLICATION DESCRIPTION

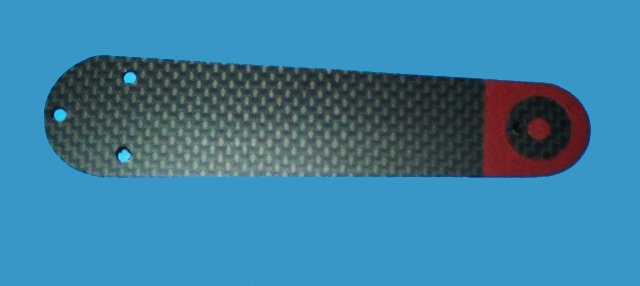

This is a 6", straight type vacuum end effector.

Our part is featured by a better durability vs, the original. The original is made by ceramic, and then fragile. The contact area of our part is made by a teflon pad, and then gives less possibility to scratch wafer surface.
