CARBON FIBER END EFFECTOR DATA SHEET

OUR CODE _______________________________________________________ORIGINAL PART

C15-AMTM1-1V _________________________________________________________ NOT AVAILABLE

RELEASE DATE Mar. 2004__________________________________________RELEASE NUMBER 1.0

EQUIPMENT MANUFACTURER_____________________________________ EQUIPMENT TYPE

APPLIED MATERIALS___________________________________________________MIRRA

APPLICATION DESCRIPTION

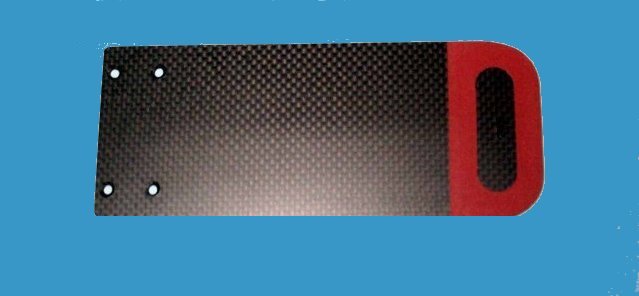

This is a straight shaped, carbon end effector larger than the normal. It is made by a single layer of 1.5 mm carbon laminate, and replaces a metal original part.

Basically our part is more durable than the bendable original. Our part is also thinner than the original, and this is an advantage during handling.
